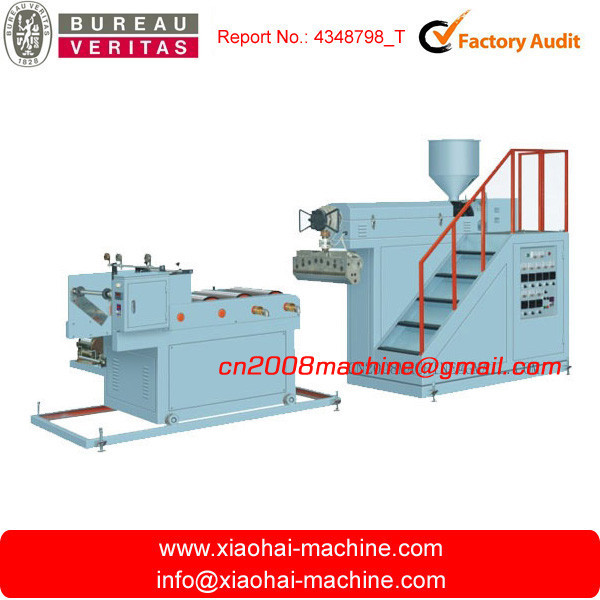

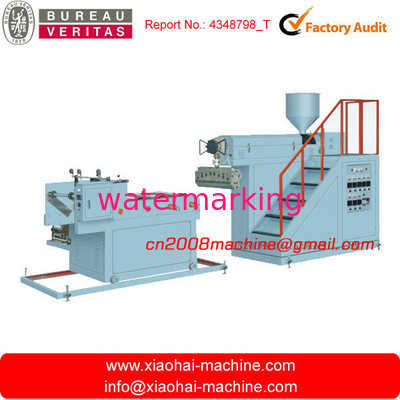

High Efficient Plastic PE Stretch Film Blowing Machine , Cling Film Casting Machines
| Place of Origin: | Zhejiang, China |
| Brand Name: | Xiaohai |
| Certification: | CE |
| Model Number: | SF-500 |
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Seaworthy Package |
| Delivery Time: | 30 days |
| Payment Terms: | 30 days after receiving 30% deposit. |
| Supply Ability: | 30 sets/month |
|
Detail Information |
|||
Product Description
High Efficient Plastic PE Stretch Film Blowing Machine , Cling Film Casting Machines
Quick Detail:
Stretch Film Making Machine
1. single layer/screw
2. co-extrusion stretch film
3. stretch film & cling film
4. material LLDPE
| Condition | New |
| Application | Film |
| Plastic Processed | PE |
| Automatic | Yes |
| Voltage | 220V or 380V |
| Power(W) | 22KW |
| Certification | CE |
| Warranty | One Year |
| After-sales Service Provided | Engineers available to service machinery overseas |
Description:
Stretch Film Making Machine is used to making LLDPE as main material and adopts several kinds of resins to produce the double-side self-sticky stretch wrapping film. The film has good stretch strength,anti-puncturable ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping of palletized goods. It’s a good substitute for hot shrinking packaging film during transportation.
Applications:
Stretch Film Making Machine is used for making stretch film to pack pallets etc. goods.
Specifications:
| Model No. | SF-500 |
| Diameter of Screw | 55mm |
| L/D | 28:1 |
| Rotation speed of screw | 10-120rpm |
| Folding Width of Products | 200-500mm |
| Width of T-die | 600mm |
| Thickness | 0.008-0.05mm |
| Main motor power | 15kw |
| Heating Power | 24kw |
| Traction power of waste edge | 0.75kw |
| Ouput | 30kg/h |
| Cooling way | water 4T/h |
| Machine weight | 2200kg |
| Machine Dimension(LxWxH) | 5600x1500x1800mm |
Optional equipment
| Name |
| Glue Pump |
| Waste film Crusher |
| Chiller |
| Air compressor |
| Recycle machine inline |
